| Place of Origin: | CHINA |
| Markenname: | IKP |
| Zertifizierung: | CE/UL/REACH/ROHS |
| Model Number: | IKP-LF-R Series |
| Minimum Order Quantity: | 1000 |
|---|---|
| Preis: | 0.29-0.35 |
| Packaging Details: | Carton |
| Delivery Time: | 10-15 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100,000/week |

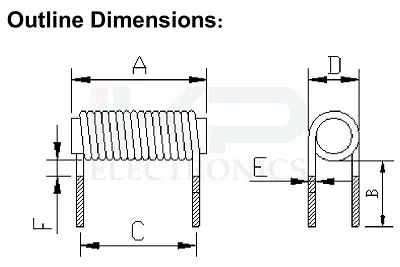

| Typ | - Ich weiß. | Bmin | Krell | Dmax | E ± 0.05 | Fmax |
| R0205 | 6 | 5 | 5 | 3.5 | 0.2-2.0 mm | 1.5 |
| R0310 | 11 | 5 | 8 | 5 | 0.2-2.0 mm | 1.5 |
| R0415 | 16 | 5 | 12 | 5.5 | 0.2-2.0 mm | 1.5 |
| R0520 | 21 | 5 | 18 | 7 | 0.2-2.0 mm | 1.5 |
| R0630 | 31 | 5 | 28 | 9.5 | 0.2-2.0 mm | 1.5 |
| R0820 | 23 | 5 | 18 | 16 | 0.2-2.0 mm | 1.5 |
| R1040 | 42 | 5 | 38 | 24 | 0.2-2.0 mm | 1.5 |
| Teil Nr. | Induktivität (uH) |
DCR (OHM) MAX |
Nennstrom (AMP) MAX |
SRF (MHz) MIN |
Durchmesser des Drahtes (mm) |
Z | Gewicht (g/stück) |
| R0205-1R0K | 1 | 0.04 | 0.56 | 200 | 0.3 | 11.5 | 0.15 |
| R0205-1R2K | 1.2 | 0.04 | 0.56 | 180 | 0.3 | 12.5 | 0.165 |
| R0310-1R8K | 1.8 | 0.026 | 1.9 | 160 | 0.55 | 11.5 | 0.7 |
| R0310-2R2K | 2.2 | 0.028 | 1.57 | 150 | 0.5 | 13.5 | 0.714 |
| R0310-2R7K | 2.7 | 0.03 | 1.57 | 140 | 0.5 | 15.5 | 0.729 |
| R0310-3R3K | 3.3 | 0.035 | 1.27 | 135 | 0.45 | 17.5 | 0.686 |
| R0310-3R9K | 3.9 | 0.05 | 1 | 110 | 0.4 | 18.5 | 0.634 |
| R0310-4R7K | 4.7 | 0.07 | 0.76 | 90 | 0.35 | 19.5 | 0.575 |
| R0415-4R7K | 4.7 | 0.024 | 2.26 | 90 | 0.6 | 17.5 | 1.6 |
| R0415-5R6K | 5.6 | 0.03 | 1.9 | 80 | 0.55 | 18.5 | 1.4 |
| R0415-6R8K | 6.8 | 0.04 | 1.57 | 80 | 0.5 | 18.5 | 1.4 |
| R0415-8R2K | 8.2 | 0.06 | 1.27 | 80 | 0.45 | 21.5 | 1.32 |
| R0415-100K | 10 | 0.08 | 1 | 70 | 0.4 | 24.5 | 1.2 |
| R0520-100K | 10 | 0.04 | 2.65 | 60 | 0.65 | 22.5 | 3.1 |
| R0520-120K | 12 | 0.044 | 2.26 | 55 | 0.6 | 23.5 | 2.98 |
| R0520-150K | 15 | 0.06 | 1.9 | 45 | 0.55 | 27.5 | 2.97 |
| R0520-180K | 18 | 0.08 | 1.57 | 40 | 0.5 | 29.5 | 2.87 |
| R0520-220K | 22 | 0.1 | 1.27 | 38 | 0.45 | 32.5 | 2.73 |
| R0520-270K | 27 | 0.15 | 1 | 36 | 0.4 | 36.5 | 2.63 |
| R0630-4R7K | 4.7 | 0.005 | 16.08 | 85 | 1.6 | 12.5 | 10.2 |
| R0630-5R6K | 5.6 | 0.005 | 16.08 | 80 | 1.6 | 14.5 | 11 |
| R0630-6R8K | 6.8 | 0.008 | 10.61 | 75 | 1.3 | 15.5 | 8.68 |
| R0630-8R2K | 8.2 | 0.009 | 9.04 | 67 | 1.2 | 16.5 | 8.35 |
| R0630-100K | 10 | 0.01 | 9.04 | 64 | 1.2 | 19.5 | 8.8 |
| R0630-120K | 12 | 0.018 | 6.28 | 57 | 1 | 20.5 | 7.43 |
| R0630-150K | 15 | 0.023 | 5.08 | 53 | 0.9 | 23.5 | 7.23 |
| R0630-180K | 18 | 0.03 | 4.02 | 49 | 0.8 | 24.5 | 6.7 |
| R0630-220K | 22 | 0.045 | 3.07 | 44 | 0.7 | 27.5 | 6.24 |
| R0630-270K | 27 | 0.05 | 3.07 | 42 | 0.7 | 31.5 | 6.4 |
| R0630-330K | 33 | 0.06 | 2.65 | 36 | 0.65 | 35.5 | 6.53 |
| R0630-390K | 39 | 0.08 | 2.26 | 34 | 0.6 | 40.5 | 6.23 |
| R0630-470K | 47 | 0.11 | 1.9 | 32 | 0.55 | 44.5 | 6.22 |
| R0630-560K | 56 | 0.14 | 1.57 | 30 | 0.5 | 46.5 | 5.8 |
