| Place of Origin: | CHINA |
| Markenname: | IKP |
| Zertifizierung: | CE/UL/REACH/ROHS |

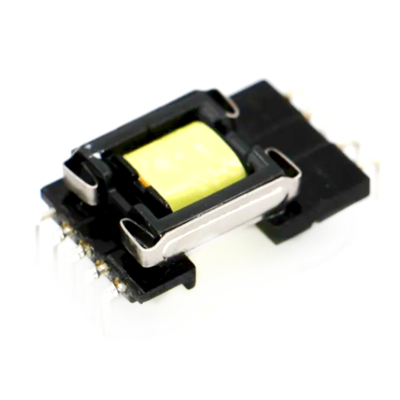

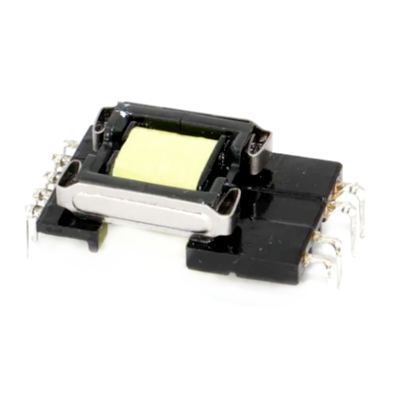

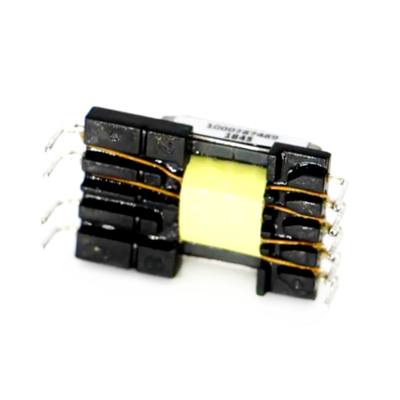

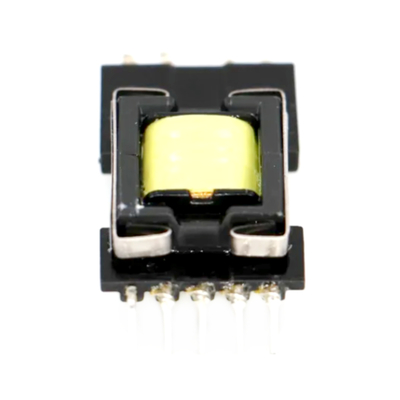

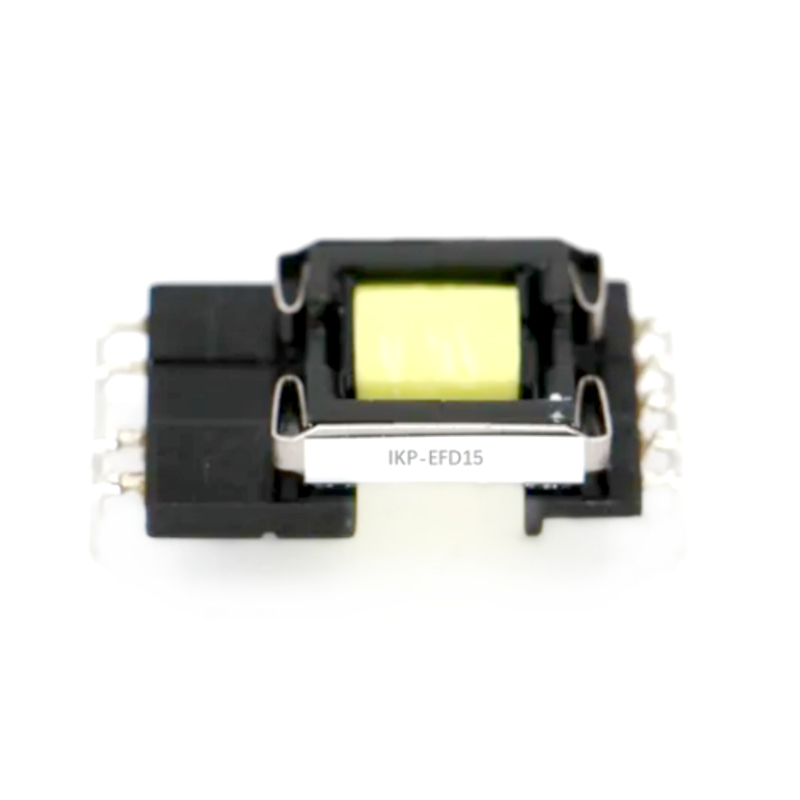

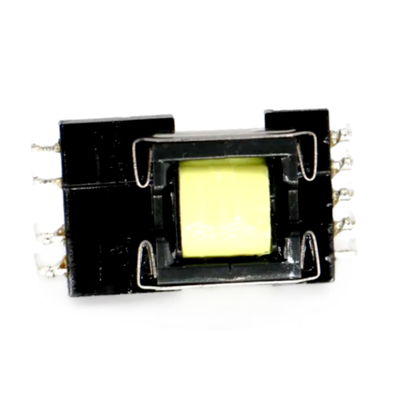

| Model Number: | IKP-LF-EFD15 |
| Minimum Order Quantity: | 1000 |
|---|---|
| Preis: | 0.72-0.77 |
| Packaging Details: | Carton |
| Delivery Time: | 10-15 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100,000/week |
| Typ | Formstruktur | Abmessung | Leistungsbereich | |||||
| A | B | C | D | E | F | |||
| EP7 | Horizontal | 10.0Max | 10.0±0.5 | 7.6±0.5 | 3.5±0.3 | 2.4±0.3 | 5.3±0.5 | 8W Max |
| EP10 | 12.0Max | 10.9±0.5 | 11.0±0.5 | 3.5±0.3 | 2.5±0.3 | 7.5±0.5 | 15W Max | |
| EP13 | 15.0Max | 11.7±0.5 | 13.7±0.5 | 3.5±0.3 | 2.5±0.3 | 10.0±0.5 | 20W Max | |
| EP17 | 20.0Max | 15.0±0.5 | 19.0±0.5 | 4.0±0.3 | 5.0±0.3 | 15.0±0.3 | 25W Max | |
| EPC13 | 14.5Max | 7.5±0.5 | 13.4±0.5 | 3.5±0.3 | 2.5±0.3 | 10.5±0.5 | 15W Max | |
| EPC17 | 19.0Max | 9.7±0.5 | 15.5±0.5 | 3.5±0.3 | 3.0±0.3 | 13.0±0.5 | 20W Max | |
| EPC19 | 21.0Max | 9.5±0.5 | 19.0±0.5 | 2.5±0.3 | 2.5±0.3 | 21.2±0.5 | 25W Max | |
| EPC25 | 27.0Max | 15.7±0.5 | 24.9±0.5 | 3.5±0.3 | 5.0±0.3 | 20.0±0.5 | 45W Max | |
| EP7 | SMD | 10.0Max | 8.25±0.5 | 6.6±0.5 | 0.3±0.1 | 2.5±0.3 | 8.9±0.5 | 4.5W Max |
| EP10 | 12.0Max | 9.0±0.5 | 10.5±0.5 | 0.2±0.1 | 2.5±0.3 | 14.6±0.5 | 8W Max | |
| EP13 | 14.0Max | 10.0±0.5 | 13.0±0.5 | 0.4±0.1 | 2.5±0.3 | 17.0±0.5 | 15W Max | |
| EPC10 | 11.5Max | 4.65±0.5 | 9.0±0.5 | 0.25±0.1 | 2.5±0.3 | 11.5±0.5 | 8W Max | |
| EPC13 | 15.0Max | 6.7±0.5 | 14.2±0.5 | 0.2±0.1 | 3.0±0.3 | 19.7±0.5 | 15W Max | |
| EPC17 | 19.0Max | 9.4±0.5 | 17.3±0.5 | 0.3±0.1 | 3.5±0.3 | 23.0±0.5 | 20W Max | |
| EPC19 | 21.0Max | 9.6±0.5 | 19.0±0.5 | 0.35±0.1 | 2.5±0.3 | 24.1±0.5 | 25W Max | |
