| Herkunftsort: | China |
| Markenname: | IKP |
| Zertifizierung: | CE/UL/REACH/ROHS |
| Modellnummer: | IKP-LF-CMC Reihe |
| Min Bestellmenge: | 1000 |
|---|---|
| Preis: | 5.25-5.33 |
| Verpackung Informationen: | Karton |
| Lieferzeit: | 10-15 Tage |
| Zahlungsbedingungen: | L/C, T/T |
| Versorgungsmaterial-Fähigkeit: | 100,000/Woche |
| Teil Nr. | Induktivität | Induktivitätsdifferenz (maximal) |
Gleichstromwiderstand (maximal) |
Nennstrom (maximal) |

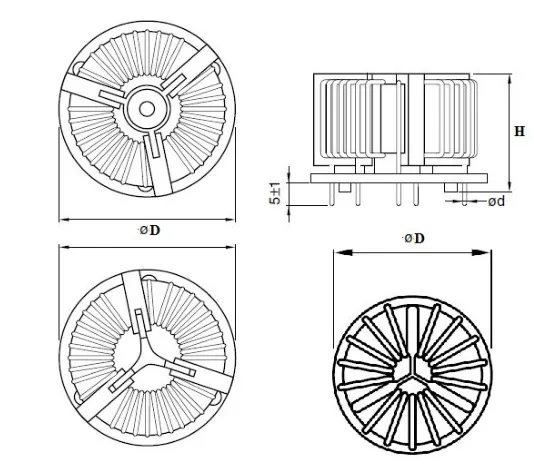

Abmessungen (ΦD) |
| T6030-752-5 | 7.5mH | 150 μH | 0.1Ω | 5A | 0.9 mm |
| T6030-162-10 | 10,6 mH | 100 μH | 0.02Ω | 10A | 1.3 mm |
| T6030-102-14 | 1.0 mH | 75 μH | 0.02Ω | 14A | 1.5 mm |
| T6035-201-30 | 0.2mH | 10 μH | 3Ω | 30A | 2.6 mm |
| T6035-501 bis 25 | 0.5mH | 15 μH | 5Ω | 25A | 2.3 mm |
| T6035-102-20 | 1.0 mH | 20 μH | 8Ω | 20A | 2.0 mm |
| T6035-162-15 | 10,6 mH | 30 μH | 12Ω | 15A | 10,8 mm |
| T3524-302-3 | 3mH | 150 μH | 100Ω | 3A | 00,8 mm |
| T3524-502-3 | 5mH | 200 μH | 130Ω | 3A | 00,8 mm |
| T3524-102-5 | 1 mH | 50 μH | 50Ω | 5A | 1.0 mm |
| T3524-202-5 | 2 mH | 150 μH | 60Ω | 5A | 1.0 mm |
| T4333-502-5 | 5mH | 200 μH | 55Ω | 5A | 1.1 mm |
| T4333-302-7 | 3mH | 250 μH | 35Ω | 7A | 1.3 mm |
| T4333-102-10 | 1 mH | 50 μH | 15Ω | 10A | 1.5 mm |
| T4333-501-15 | 0.5mH | 30 μH | 8Ω | 15A | 10,8 mm |
| T5228-102-5 | 1 mH | 50 μH | 45Ω | 5A | 1.0 mm |
| T5228-502-5 | 5mH | 200 μH | 95Ω | 5A | 1.0 mm |
| T5228-302-8 | 3mH | 150 μH | 40Ω | 8A | 1.2 mm |
| T5228-102-10 | 1 mH | 50 μH | 20Ω | 10A | 1.3 mm |
| T5228-202-10 | 2 mH | 80 μH | 25Ω | 10A | 1.5 mm |
| T6332-202-15 | 2 mH | 80 μH | 20Ω | 15A | 2.0 mm |
| T6332-152-18 | 1.5mH | 50 μH | 15Ω | 18A | 2.1 mm |
| T6332-102-20 | 1 mH | 50 μH | 8Ω | 20A | 2.3 mm |
| T6332-501-25 | 0.5mH | 30 μH | 6Ω | 25A | 2.5 mm |
| T6340-302-10 | 3mH | 150 μH | 35Ω | 10A | 1.5 mm |
| T6340-202-15 | 2 mH | 120 μH | 25Ω | 15A | 10,8 mm |
| T6340-102-20 | 1 mH | 50 μH | 10Ω | 20A | 2.3 mm |
| T6340-102-25 | 1 mH | 50 μH | 8Ω | 25A | 2.4 mm |
