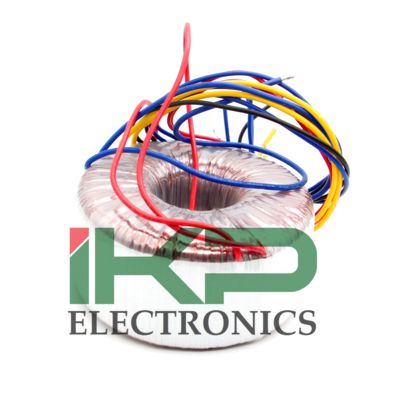

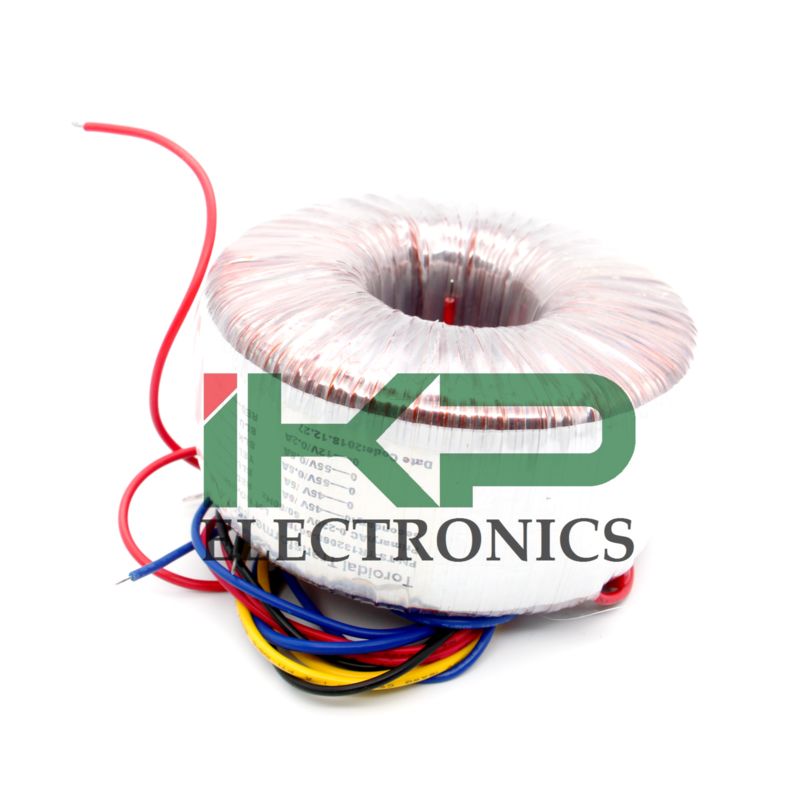

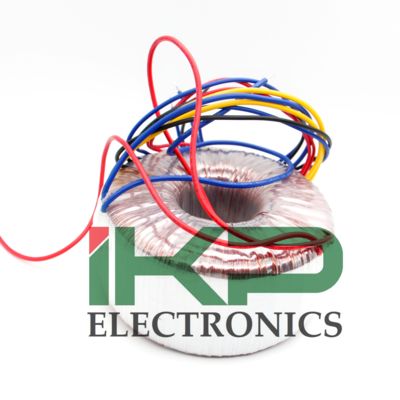

145*65mm Outside Dimension D*H Toroidal Transformer for UPS

145*65mm Outside Dimension D*H Toroidal Transformer for UPS

    • 145*65mm Outside Dimension D*H Toroidal Transformer for UPS
    • 145*65mm Outside Dimension D*H Toroidal Transformer for UPS
    • 145*65mm Outside Dimension D*H Toroidal Transformer for UPS
    • 145*65mm Outside Dimension D*H Toroidal Transformer for UPS
    • 145*65mm Outside Dimension D*H Toroidal Transformer for UPS
    • 145*65mm Outside Dimension D*H Toroidal Transformer for UPS
    • 145*65mm Outside Dimension D*H Toroidal Transformer for UPS

    Produktdetails:

    Herkunftsort: China
    Markenname: IKP
    Zertifizierung: CE/UL/REACH/ROHS
    Modellnummer: Toroidaltransformator

    Zahlung und Versand AGB:

    Min Bestellmenge: 1000
    Preis: 3.00-20.00
    Verpackung Informationen: Ausgestopft
    Lieferzeit: 10-15 Tage
    Zahlungsbedingungen: L/c, t/t
    Versorgungsmaterial-Fähigkeit: 100.000/Woche
    Kontakt
    Ausführliche Produkt-Beschreibung

    Specifications:

    • Power range:500VA to 10000VA

    • Phase: Single

    • Input / Output: Customized

    • Insulation Class: UL class B, F, H, N (optional)

    • Isolation: 4KV (Hi-pot)

    • Easy to change diameter and height of the core

    • Customized specifications are welcome



    Rated Power

    (VA)

    Outside Dimension

    D*H(mm)

    Weight

    (kg)

    Temp. Rise

    (℃)

    		 Approval
    500 145*65 5.5 52 UL/CE/RoHS/CQC
    1000 175*85 8.5 54 UL/CE/RoHS/CQC
    2000 210*90 14.7 55 UL/CE/RoHS/CQC
    2500 210*100 16.7 56 UL/CE/RoHS/CQC
    3000 215*105 17.7 57 UL/CE/RoHS/CQC
    3500 230*115 21.8 58 UL/CE/RoHS/CQC
    5000 290*115 30.0 59 UL/CE/RoHS/CQC
    7000 330*115 35.0 62 UL/CE/RoHS/CQC
    10000 360*115 45.0 65 UL/CE/RoHS/CQC


    ◆We can design and manufacture customized part with specific requirement


    145*65mm Outside Dimension D*H Toroidal Transformer for UPS◆We can design and manufacture customized part with specific requirement◆We can design and manufacture customized part with specific requirement



    145*65mm Outside Dimension D*H Toroidal Transformer for UPS145*65mm Outside Dimension D*H Toroidal Transformer for UPS145*65mm Outside Dimension D*H Toroidal Transformer for UPS145*65mm Outside Dimension D*H Toroidal Transformer for UPS
