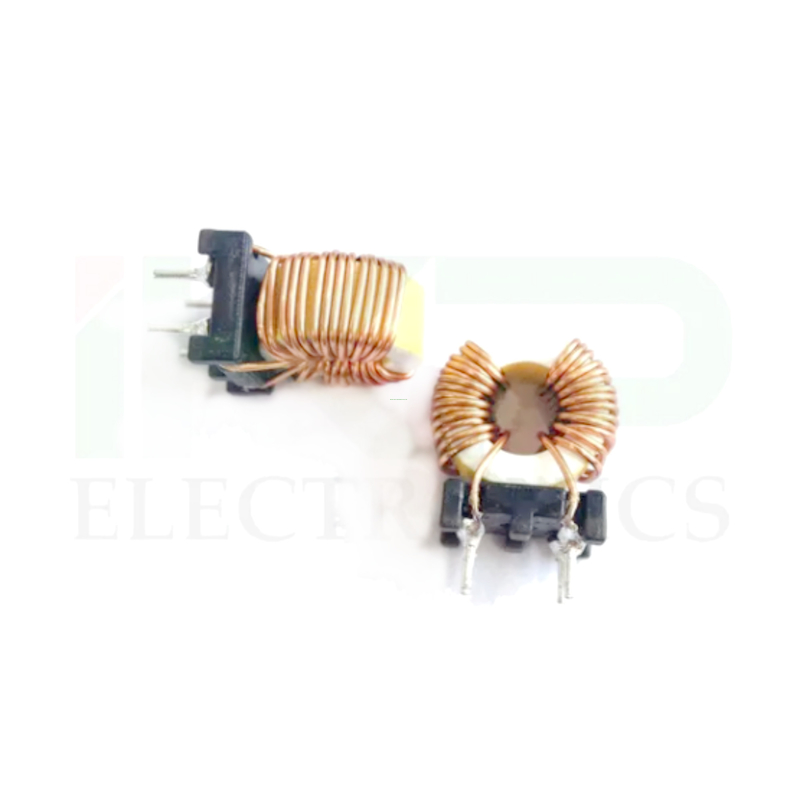

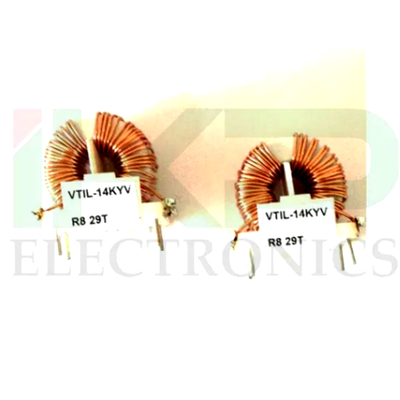

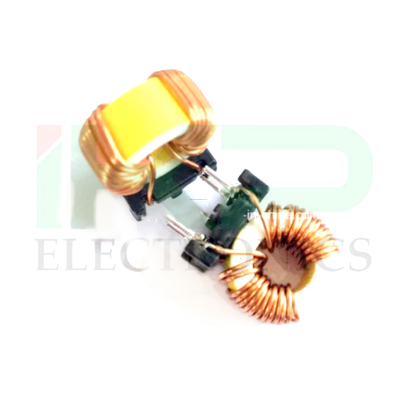

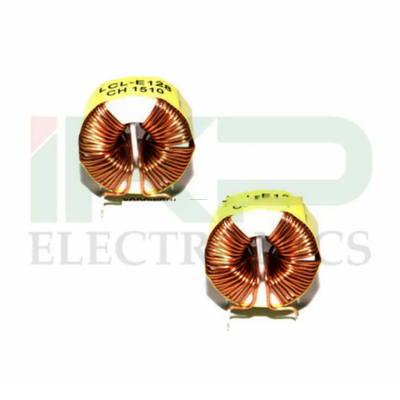

Beschreibung des Produkts
Elektrische Eigenschaften (Temperatur: 25 ± 50 cm, RH: 65 ± 1 RH)
1) Induktivität (bei 10 kHz 0,05 V): L2-7 = L3-6 = 6,8mh + 50%/-30%
2) Widerstand: DCR2-7 = DCR3-6=250mΩ maximal
3) Hi-pot: N1 bis N2: 1500V Wechselstrom, 3mA, 60er Jahre
Liste der Materialien:
1 Kern: T14x9x5 TS10 TDG oder EQU
2 Draht: UEW Polyurethan 130C Tai-i elektrische Draht und Kabel Co Ltd, E85640
3 PCB: FR-4 1,5x9x5
4 Fall
5 Epoxy: 6020H Bohrbrunnen Elektronikmaterial Co Ltd, E2296335
| Teilnummer |
Induktivität (mH) @ 1KHz |
IDC (A) MAX. |
DCR()MAX. |
Drahtdurchmesser (Φ) mm |
| CMC1508-0.625MH |
0.625 |
1 |
0.04 |
0.41 |
| CMC1508-0.1MH |
0.1 |
1 |
0.06 |
0.41 |
| CMC1508-0.225MH |
0.225 |
1 |
0.07 |
0.41 |
| CMC1508-0.4MH |
0.4 |
1 |
0.1 |
0.41 |
| CMC1508-0.625MH |
0.625 |
1 |
0.125 |
0.41 |
| CMC-1508-0.9MH |
0.9 |
2 |
0.03 |
0.51 |
| CMC1508-1.225MH |
1.225 |
2 |
0.04 |
0.51 |
| CMC1508-1.6MH |
1.6 |
2 |
0.06 |
0.51 |
| CMC1508-2.0MH |
2.0 |
2 |
0.075 |
0.51 |
| CMC1508-2.5MH |
2.5 |
3 |
0.02 |
0.58 |
| CMC1508-3.0MH |
3.0 |
3 |
0.03 |
0.58 |
| CMC1813-0.85MH |
0.85 |
2 |
0.05 |
0.58 |
| CMC1813-0.62MH |
0.62 |
2 |
0.075 |
0.58 |
| CMC1813-0.1MH |
0.1 |
2 |
0.085 |
0.58 |
| CMC1813-0.22MH |
0.22 |
2 |
0.11 |
0.58 |
| CMC1813-0.4MH |
0.4 |
2 |
0.2 |
0.58 |
| CMC1813-0.62MH |
0.625 |
5 |
0.035 |
0.58 |
| CMC3118-0.05MH |
0.055 |
5 |
0.04 |
0.76 |
| CMC3118-0.22MH |
0.22 |
4 |
0.046 |
0.76 |
| CMC3118-0.49MH |
0.495 |
4 |
0.06 |
0.76 |
| CMC3118-0.88MH |
0.88 |
2 |
0.2 |
0.58 |
| CMC3118-1.37MH |
1.375 |
4 |
0.13 |
0.76 |
| CMC3118-1.98MH |
1.98 |
5 |
0.072 |
0.91 |
